WASH PLANT: Hydro-Clean 1000 from Haver & Boecker offers convenience



ST. CATHARINES, Ont. – Haver & Boecker, a leading equipment manufacturer and solutions provider in aggregates and mining applications, introduces the skid-mounted Hydro-Clean™ 1000 wash plant as a complete solution. In addition to a Hydro-Clean 1000 washing system combined with a Tyler L-Class vibrating rinse screen, Haver & Boecker now offers semi-portability by mounting the complete system on a custom skid structure.

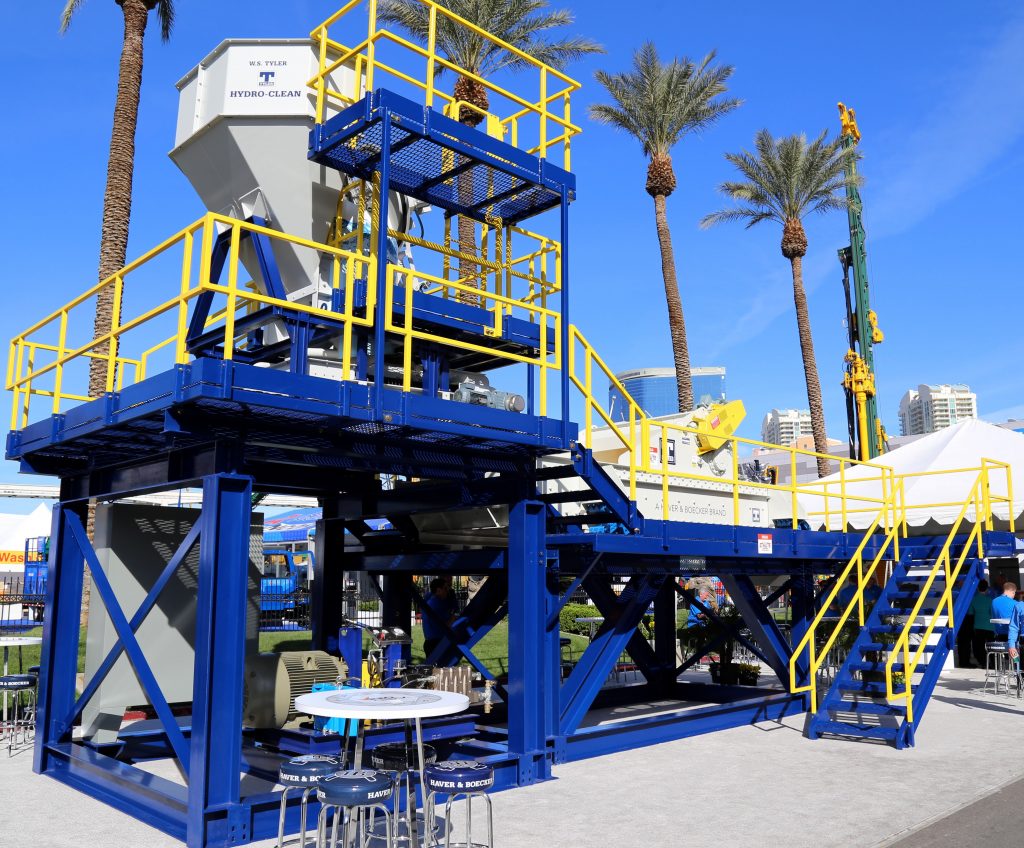

The Hydro-Clean 1000 wash plant is a complete solution for operations looking for a compact, semi-portable system.

The opportunity to purchase the three components together saves operations months of time they would have spent on designing and building a skid structure for a wash plant. The new package delivers maximum serviceability in a small footprint.

The compact Hydro-Clean 1000 processes as much as 200 t/h of sellable product with its short retention times, using minimal water and power. During the cleaning process, the washed material works its way down the HC 1000’s drum and exits onto a discharge conveyor that leads to the L-Class wash screen. The vibrating screen removes any remaining dirt or clay still on the stone as it fractionates the material. Haver & Boecker engineers drew on their extensive experience to design and build a skid structure perfectly suited for the semi-portable system.

Taking feed material as large as 150 mm into its one-metre vertical drum, the Hydro-Clean 1000 employs 1,380 kPa high pressure nozzles, rotating at 90 rpm, to remove silt and clay particles as small as 63 microns from mineral mixtures.

The wash plant’s other major component, the L-Class vibrating screen, uses a double-shaft overhead drive system, with direct mounted motors, to provide multiple speed and stroke combinations in a compact design. With a horizontal screen, material spends more time on the deck for optimal cleanliness.

Haver & Boecker manufactures the plant with stairs, eliminating the dangers of carrying parts and tools up ladders. In addition, mechanics can easily use the plant’s catwalks and platforms to reach service points, such as spray nozzles. Hydro-Clean 1000 wash plants can be engineered to customer specifications by, for example, including a different size or type of vibrating screen, more decks or a different Hydro-Clean model.

Please visit www.HaverCanada.com.
